Quick Details

  • Condition: New
  • Type: Band Heater
  • Power Source: Electric
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: BAOJUN
  • Model Number: BJ150710-02 Band Heater
  • Dimension(L*W*H): customized
  • Weight: 0.1kg/pcs
  • Voltage: 120V,12-480v
  • Power(W): customized
  • Certification: CE
  • Warranty: one year
  • After-sales Service Provided: Overseas service center available
  • Name:: silicon rubber heater to heat aluminum plate
  • Dimension(L*W*H):: can be customerized
  • Normally thickness:: 1.5mm
  • Standard lead line:: 200mm
  • Color:: red
  • Material:: silicone rubber
  • Shape:: rectangular , square, round

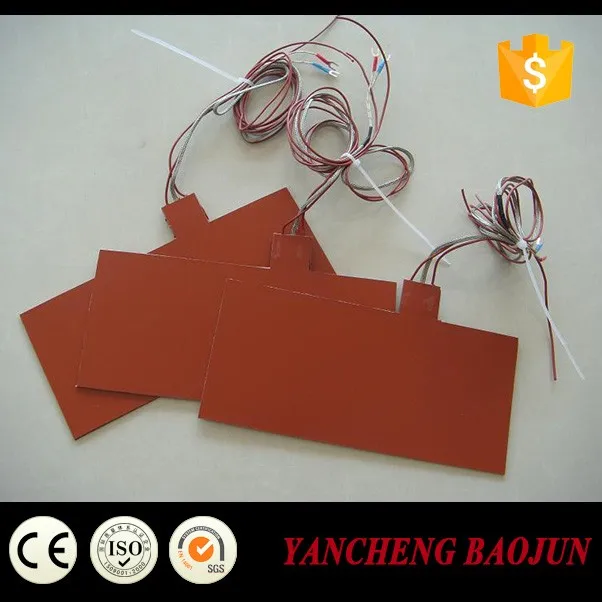

  • Thermocouple wire:: with/without
  • Warrange:: 1 Years
  • Application:: Industry/Food/Construction

Packaging & Delivery

Packaging Details Industrial silicone heating pads manufacturer are packaged with plastic bag and carton box; silicon rubber heater to heat aluminum plate
Delivery Time Shipped in 7 days after payment
Product Description

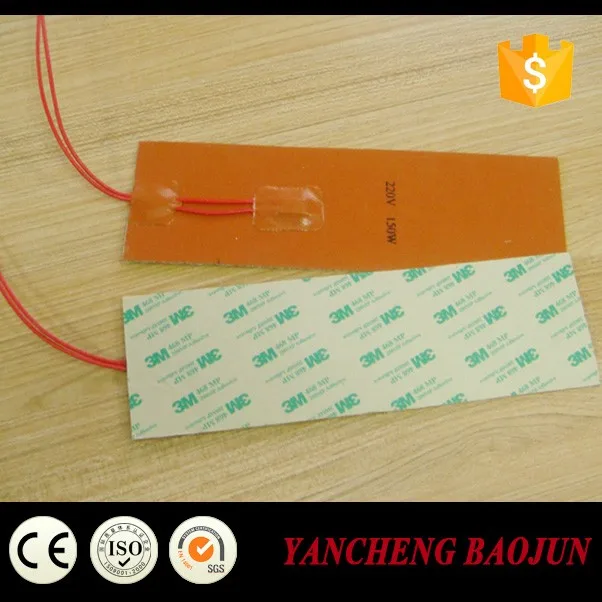

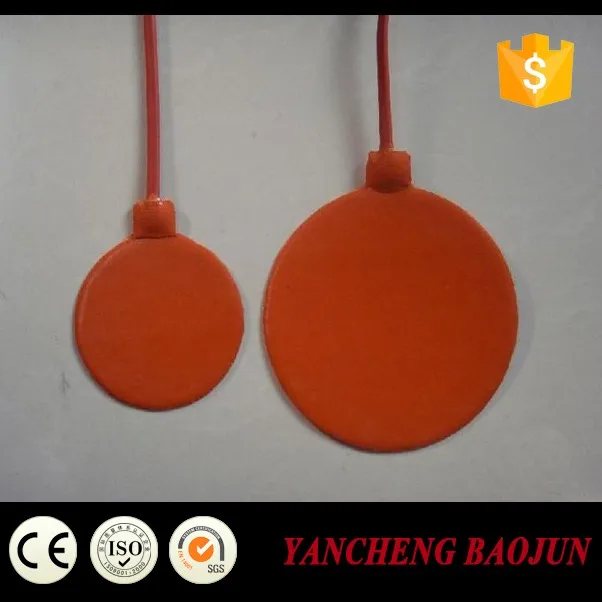

silicon rubber heater to heat aluminum plate

Silicone rubber heater

Silicone rubber heater is a kind of thin film which heats upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high-temperature die forming and aging heat treatment. Due to its high reliability, the product is highly competitive when comparing with other electric heating film products which normally have paste materials such as graphite paste or resistor paste, etc. coated on insulation materials. As a kind of soft red film which can be applied closely on different curved surfaces, the silastic heater can be fabricated in varies shapes and powers.

Product Details

Features of Silicone Rubber Heater:

1. Maximum temperature resistantof insulation : 200 C degree
2. Best continuous working temperature as 150C degree, max temperature as 230C degree momentarily.
3. Power deviation : 8% insulation resistance : >= 5MΩ
4. Compressive strength : 1500V/5s
5. Standard dimension : width: 20mm-1000mm ; Length : 25mm-1000mm; lead wire length : 200mm.
6. Fast heat diffusion , uniform heat transfer , directly heat objects on ; high thermal efficiency , high strength , long service life ,work safe , uneasy for ageing.

Applications of Silicone Rubber Heater:

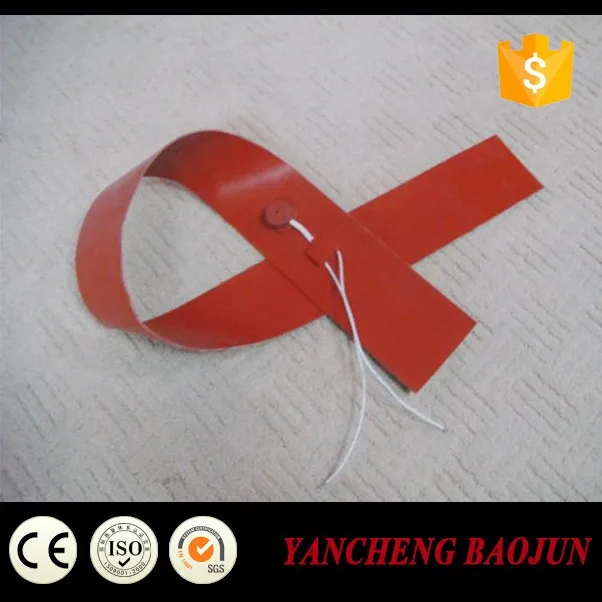

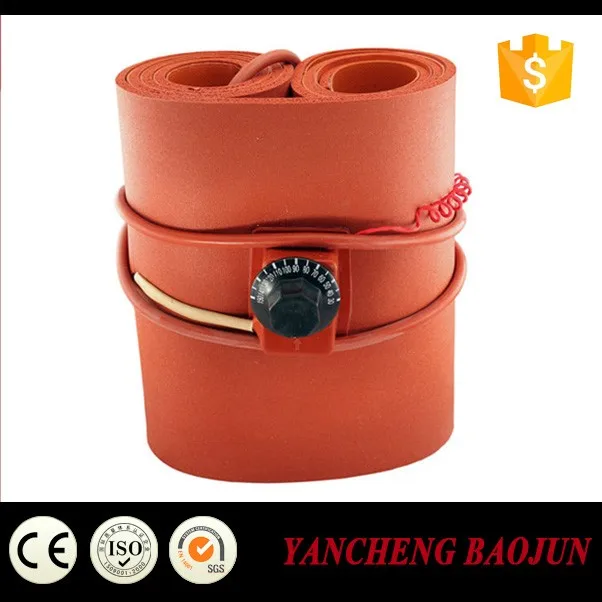

1. Silicone rubber band heater can be used in damp , no explosive gas atmosphere, industrial equipment pipelines, heat preservation for can and barrel .

Applications of Silicone Rubber Heater:

2. It can be used as a frozen prevention, air conditioner compressor ,assisting heating of elctrical equipment .

Applications of Silicone Rubber Heater:

3. Also it can be used as medical equipmentand medical care (such as blood tube heater, blood analyzer, heat supplementary for corset and waistband).

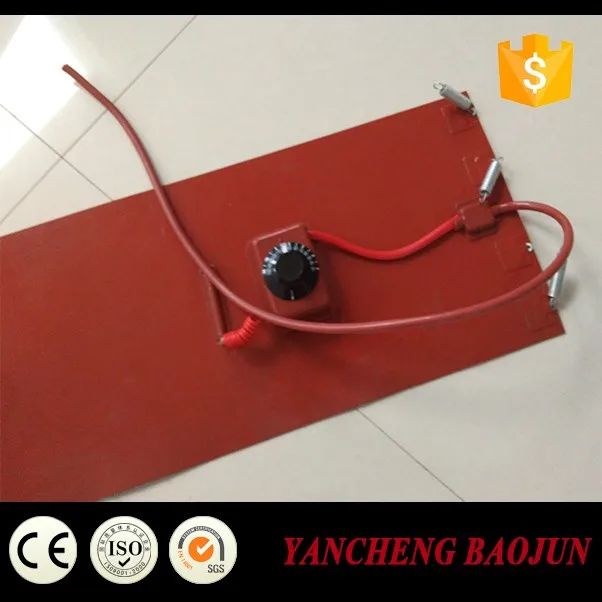

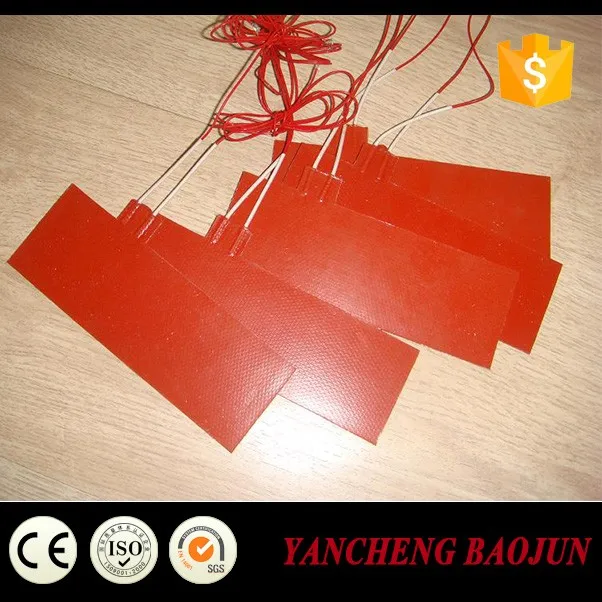

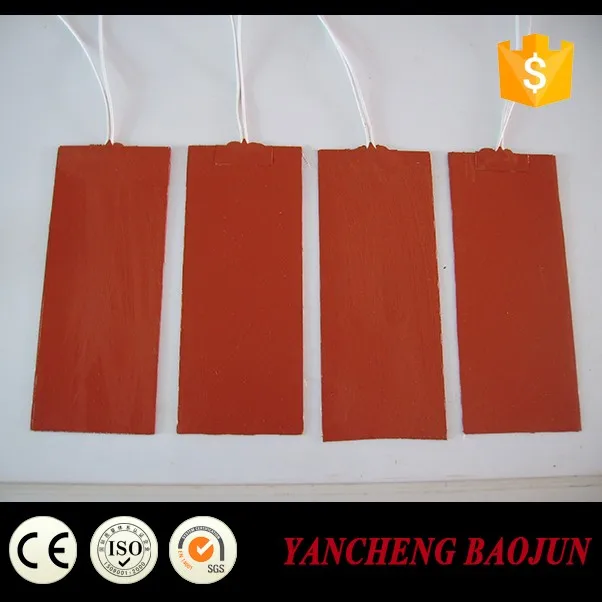

Product Details Show
Products Shipping
Name:
silicon rubber heater to heat aluminum plate
Package:
 Export wooden package of silicone heater plate
MOQ:
10 pieces of silicone heater plate
Delivery:
 15 working days of silicone heater plate
Payment :
30%T/T in advanced+70% balanced; Paypal; Western Union
Port :
Shanghai
Company Information

Yancheng Xingtai Industrial Group

Xingtai Industrial Group is a globally renowned designer and manufacturer of electric process heating and control systems.The Subsidiary Corporation Yancheng BaoJun manufactures a complete line of tubular heaters,stainless steel mica heater, coil heater and silicone rubber heater for a wide variety of industrial and commercial applications since 2001. Our electric heating products are available with digital or mechanical controls and/or thermocouples to help provide customers with accurate temperature readings.

Our heating products are also available with industrial grade safety features such as high limit cut off controls to help preserve valuable heating equipment from over heating.

We are known for our innovative products and are continually introducing new and exciting products. Continual improvement is a by-word within our company and we are always looking for ways of improving our existing products in addition to developing new ranges.
