Pellet ceramic igniter silicon nitride igniter for wood pellets

FOB Reference Price:Get Latest Price
US $8-30 / Piece | 10 Piece/Pieces for silicon nitride ignitor (Min. Order)
Supply Ability:
1000 Piece/Pieces per Week for silicon nitride ignitor
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Duct Heater
Power Source:
Electric
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
BAOJUN
Model Number:
Silicon Nitride Ignitor
Dimension(L*W*H):
Customized
Weight:
depend on the size
Voltage:
customized
Power(W):
customized
Certification:
ROHS,CE
Warranty:
12 Months
After-sales Service Provided:
Overseas service center available
Name:
Pellet ceramic igniter silicon nitride igniter for wood pellets
Thermal Conductivity:
40-50W(m*k)
Relative Density%:
99-100%
Volume Resistivity:
1014 ohm*cm
Bending Strength(RT):
higher than 600 MPa
Acid Corrosion Resistance:
Corrosion Rate less than 10g/m2*h after 6 h in 5% solution
Vickers Hardness:
15-20 Gpa
Bulk Density:
3.2-3.3 g/cm3
Fracture Toughness:
5.0-8.0 MPa*m1/2
Thermal Expansion Coefficient:
3.0 x 10 -6 /K
Packaging & Delivery
Packaging Details
Plastic bag and wooden box for silicon nitride ignitor; Pellet ceramic igniter silicon nitride igniter for wood pellets
Delivery Time
Shipped in 7 days after payment
Product Description

Pellet ceramic igniter silicon nitride igniter for wood pellets

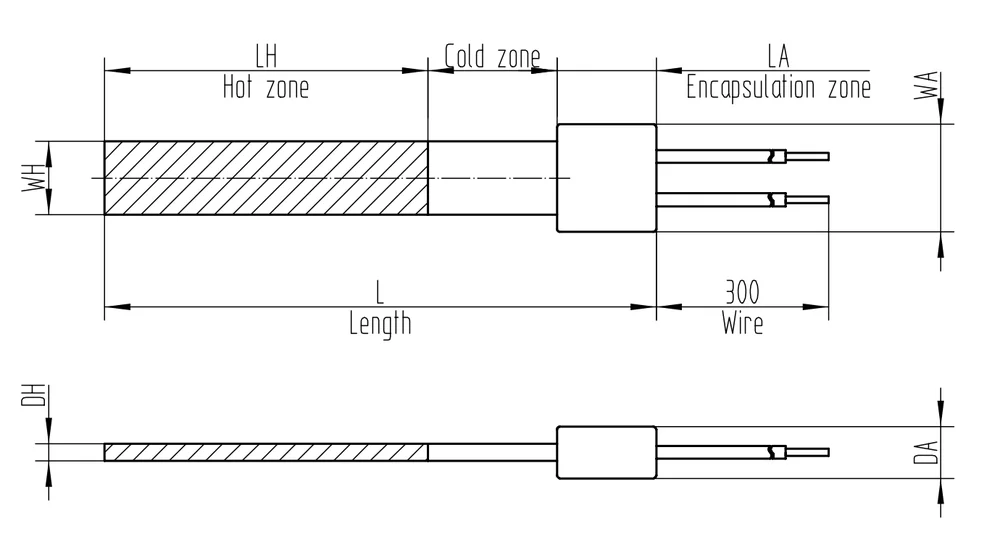

silicon nitride igniters are normally rectangular in shape. These igniters have a lot operation zone up to 1000 degree C . and a cold zone in the contact area. Encapsulated terminal can prevent short circuit caused by conductive contamination. They can be operated with or without a controller. Silicon nitride igniters have several times the durability than that of silicon carbide products.
Dimension , power and input voltage are customizable according to your requirement.
Silicon Nitride igniter can heating up to 800 to 1000degree within tens of seconds. Silicone Nitride ceramic can sustain corrosion of melting metals. With proper instatllation and igniting process , the igniter can server several years.

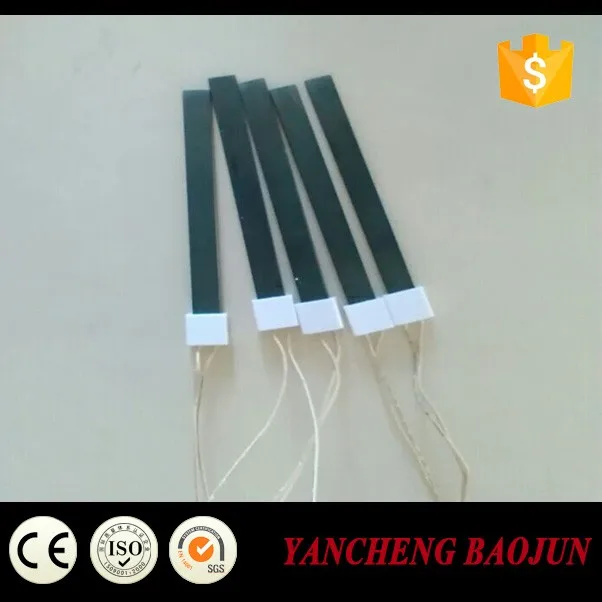

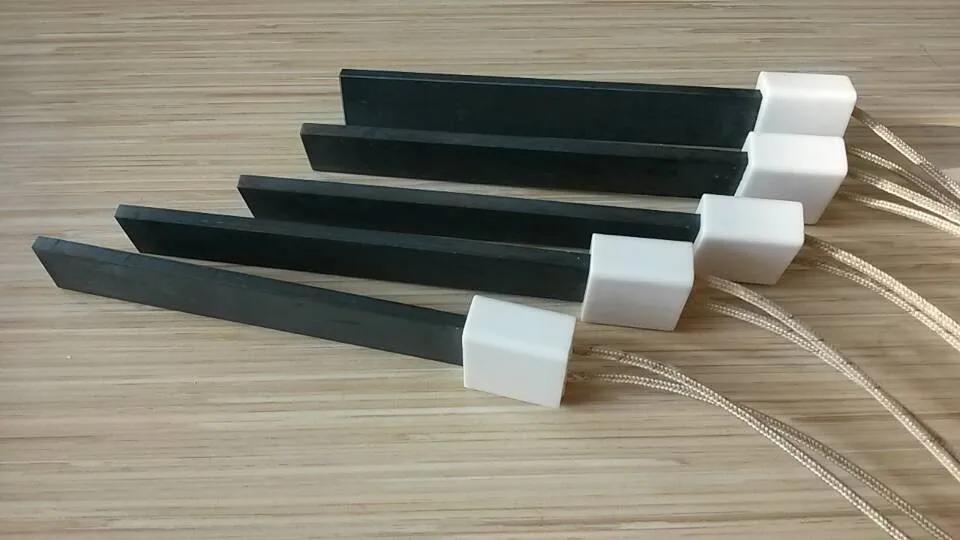

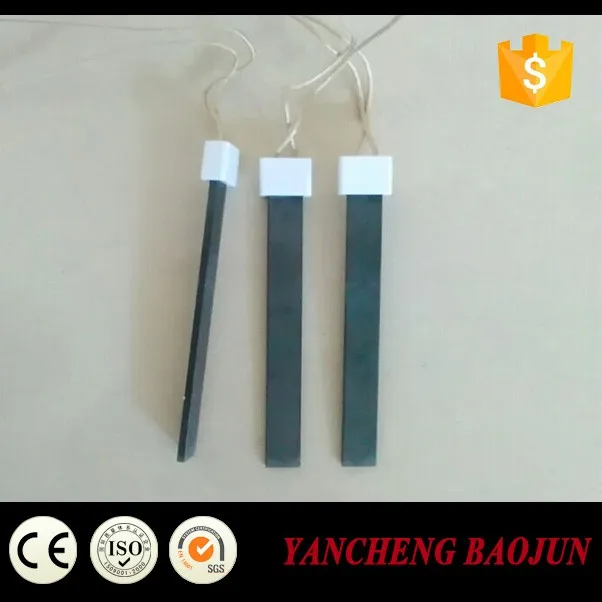

Silicon Nitride Igniter

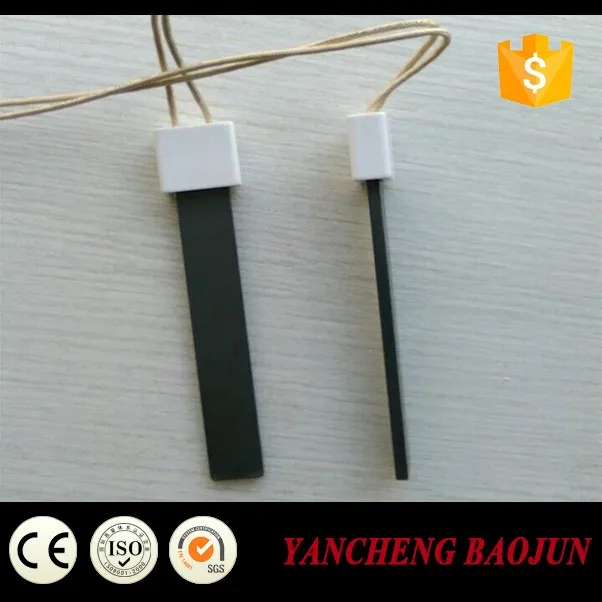

47 Direct Insert Type Silicon Nitride Igniter
58 Direct Insert Type Silicon Nitride Igniter

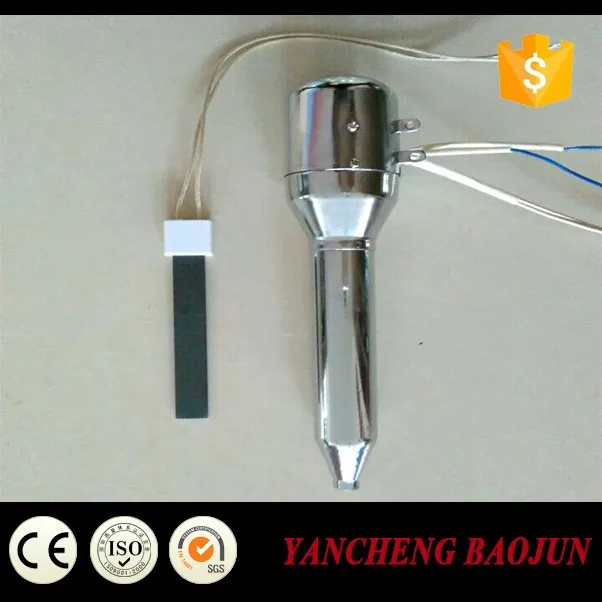

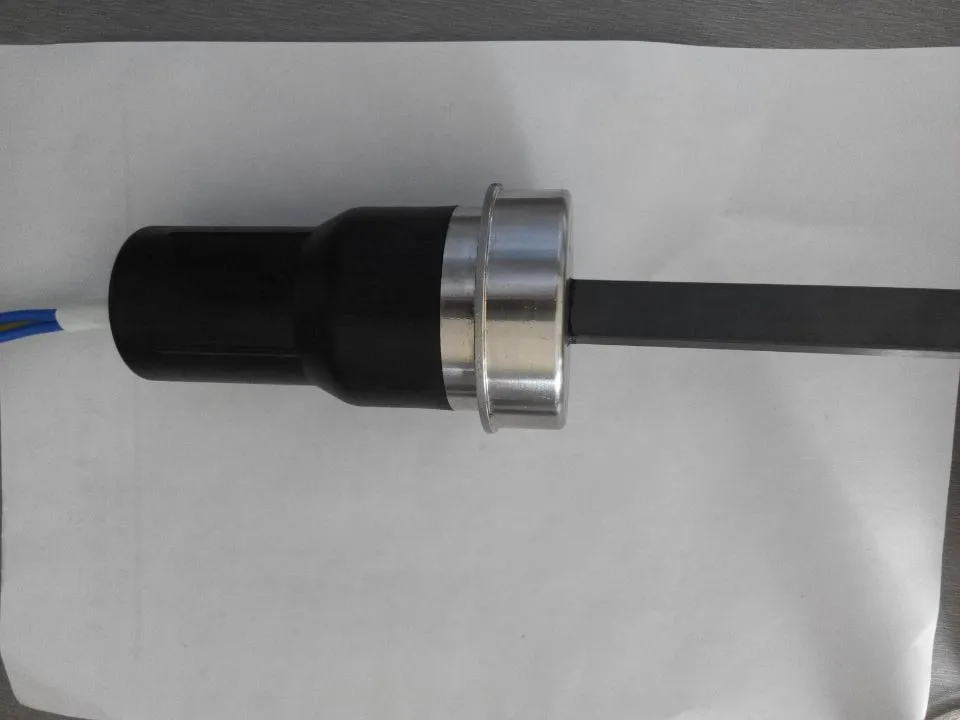

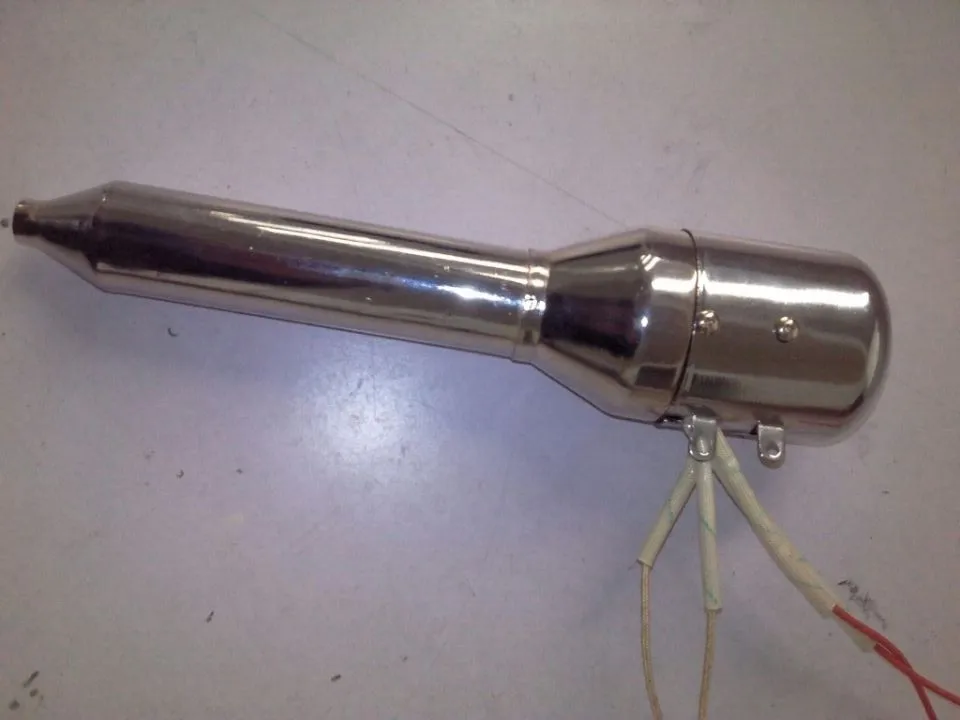

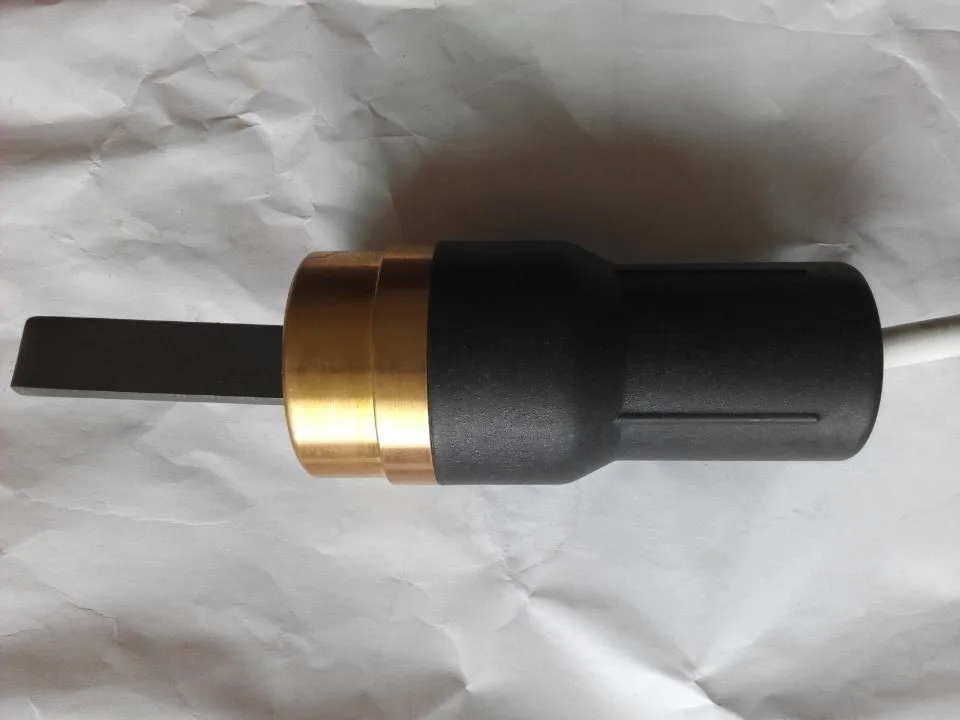

Assembled Type Silicon Nitride Igniter
Application

Application

1.Ignition of solid fuels(eg wood pellets)
2.Ignition of gas or oil
3.Reburning or igniter of exhause fumes
4.Heating of process gases
5.Pyrotechnics
6.Brazing machines
7.Heater for corrosive atmosphere

8.R&D – laboratory equipment , measuring and testing equipment , reactors
9. Mold , tool heating
10.Charcoal barbecue grill

Advantage

Fast Heating up

Corrosion resistance

Long service life

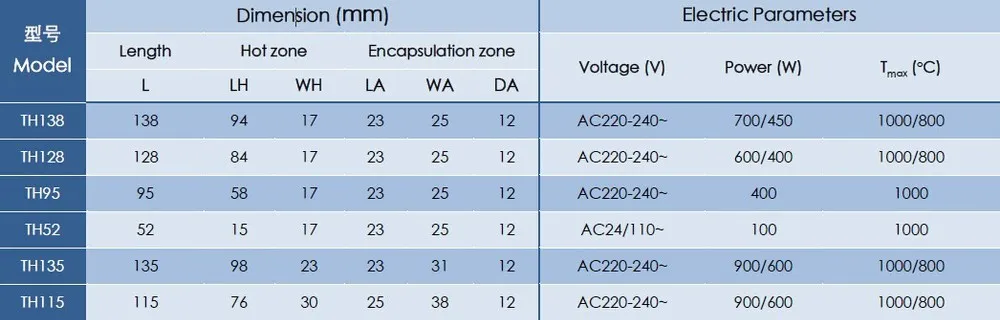

Technical Data

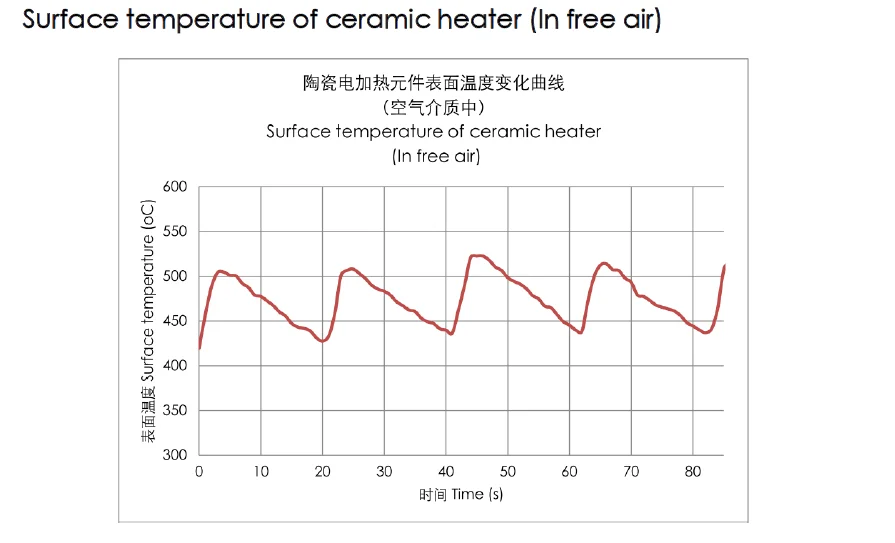

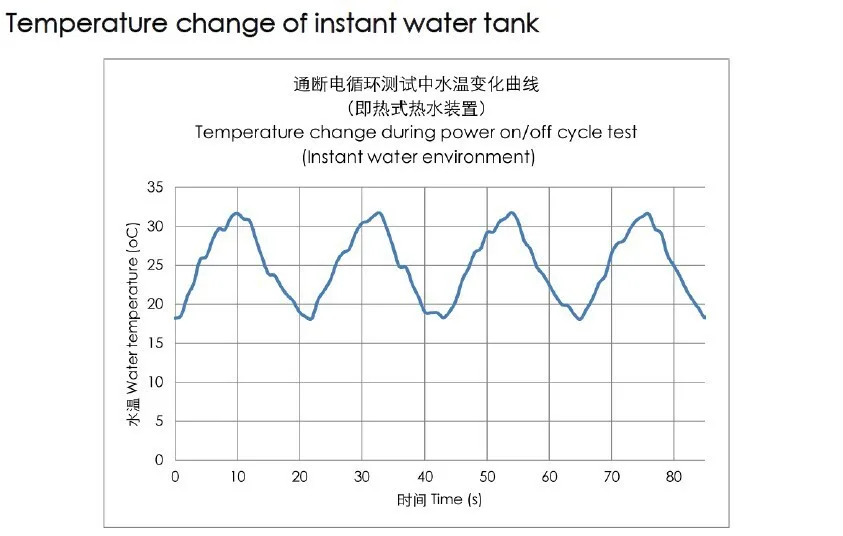

Test Report
Packing
Product Name:
Pellet ceramic igniter silicon nitride igniter for wood pellets
Package:
1. Carton box(Size: L*W*H).
2. Export wooden package is also acceptable.

MOQ:
10 pieces of Silicon Nitride Igniter

Delivery Time:

7 working days of Silicon Nitride Igniter

Payment :

30%T/T in advanced+70% balanced; Paypal; Western Union

Certifications

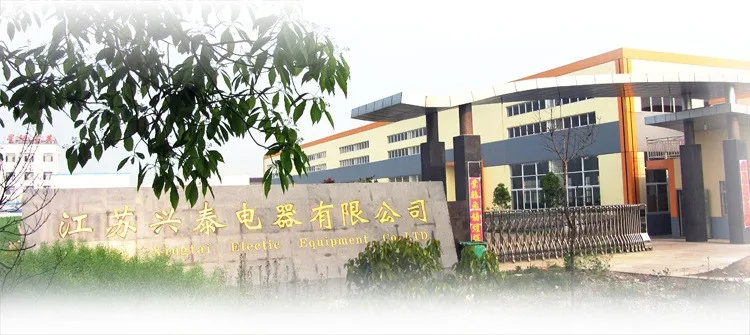

Our Company
